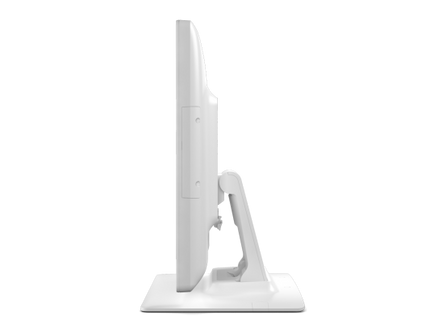

ELO TOUCH ET1523L

Touchmonitor desktop 15"

Il monitor touchscreen Elo 1523L in formato 4:3 da 15 pollici è particolarmente adatto per soddisfare i requisiti di durata ed estetica di una varietà di soluzioni interattive per la vendita al dettaglio e l'ospitalità ad alto traffico. L'elegante design in vetro zero bezel del 1523L dona un tocco pulito e moderno a qualsiasi ambiente. Il monitor tattile senza cornice è disponibile in bianco o nero con le tecnologie touch leader del settore di Elo, che forniscono entrambe un funzionamento stabile senza deriva con nitidezza dell'immagine, risoluzione e trasmissione della luce eccezionali, per una risposta al tocco accurata e immagini vivide.

Technical Specifications

Part Number(s)

PCAP White (Worldwide) - E336518
PCAP Black (Worldwide) - E738607
IntelliTouch ZB Dual Touch White (Asia-Pacific & Japan) - E243774
IntelliTouch ZB Dual Touch Black (Worldwide) - E394454


Enclosure Color

White or Black


Touch Technology & Capacity

SAW ZB (IntelliTouch® Surface Acoustic Wave) - Dual Touch
PCAP (Projected Capacitive) - 10 Touch

Diagonal Size

15'' diagonal, Active matrix TFT LCD (LED)

Aspect Ratio

4:3

Active Area (mm)

IntelliTouch ZB: 304.13mm x 228.1mm
PCAP: 305.1mm x 229.1mm


Resolution

1024 x 768 @ 60Hz

Other Supported Resolutions

1024 x 768 at 60, 65, 70 or 75 Hz
800 x 600 at 56, 60,75 Hz
720 x 400 at 70 Hz
640 x 480 at 60,75 Hz

Viewing Angle

Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total

Number of Colors

16.2 million

Brightness (typical)

LCD panel: 300 nits

IntelliTouch ZB: 270 nits
PCAP: 270 nits

Response Time-total (typical)

23 msec

Contrast Ratio

800:1

Touch Interface

USB

On Screen Display

Accessible through switches along the bottom:
Controls (side): Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power


USB Ports

2 peripheral ports (USB Interface)

Speakers

internal speakers

Input Video Signal Connector

Analog VGA on Female DB-15 connector
Digital DVI on Female DVI-D, Dual-Link connector

Power Consumption (Typical)

Monitor + AC/DC adapter
ON: 10.5W
SLEEP: 3.0W
OFF: 0.2W

Power Supply

External DC (power brick)

Input Voltage

12VDC +/- 5%

Input Connector

Coaxial power jack (2.1mm pin outer diameter, 6.4mm barrel inner diameter)

Input Frequency

Horizontal: 31.5 - 80 kHz / Vertical: 56 - 75 Hz

Monitor Dimensions (with Stand)

14.1" x 7.84" x 12.53" / 358.1mm x 199.1mm x 318.5mm

Shipping Box Dimensions

17.60" x 8.15" x 14.96" / 447mm x 207mm x 380mm

Weight (Unpackaged)

9.26 lbs / 4.2 kg

Weight (Packaged)

15.43 lb / 7.0 kg

Operating Temperature

0°C to 40°C / 32°F to 104°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%; Storage: 10% to 95%

Sealability

Touchscreen sealed to bezel; Touchscreen sealed to LCD

MTBF

50,000 hours demonstrated

Stand Options

Tilt, remove

Mounting Options

75mm VESA mount

Other Features

2 stage DPMS
VESA DDC Plug and Play
Security lock receptacle
Internal speakers

Warranty

3-year

Extended Service Options

4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125

Regulatory approvals and declarations

UL, cUL, FCC, IC, CCC, CE, UKCA, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RCM, RoHS, China RoHS, WEEE

What's in the Box

QIG, Japan Class-B TM info sheet, User Manual CD, 50W Power Brick, power cable, IEC 60320-C13 to NA/EU plug, DVI-D cable, VGA cable (DB-15 male to DB-15 male), USB cable (Type A plug to Type B plug), Audio cable, Stand base assembly, Filler Plate

Replacement DC Power Supply

The monitor may be powered with DC voltage. A optional 12V DC power brick is available at additional cost.
United States: E005277
Europe: E571601
United Kingdom: E180092
China: E558862
Taiwan: E818655
Japan: E182546
Argentina: E887099

AC Power Cable

Power cables are included. Replacement Cable Kit: E378229
North America: E378229
China: E030476
Taiwan: E637694
Japan: E849156 (3-pin to 2-pin adapter: E351985)


Optional PCAP Stylus Pen

E066148

Touch/Video/Audio/Accessory Cables:

All appropriate cables are included and are detachable.

Optional Peripherals

Magnetic Stripe Reader (Black MSR) – Elo P/N: E628912
PCAP Stylus Pen - Elo P/N: E066148

Stands, Mounts & Kits

1523L VESA Mount Plate (White) - Elo p/n: E000449
1523L VESA Mount Plate (Black) - Elo p/n: E000448
