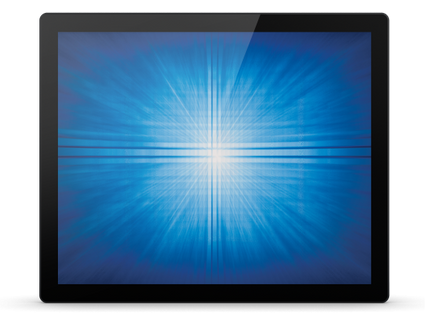

ELO TOUCH ET1991L
Touchmonitor open frame 19"
Il display touchscreen open frame da 19 pollici modello 1991L offre una soluzione di livello industriale conveniente per gli OEM e gli integratori di sistemi che richiedono un prodotto affidabile per i propri clienti. Progettati con affidabilità fin dall'inizio, i monitor della serie open frame offrono un'eccezionale nitidezza dell'immagine e trasmissione della luce con un funzionamento stabile e senza deriva per risposte al tocco accurate. La linea di prodotti della serie 90 è disponibile in un'ampia gamma di dimensioni, tecnologie touch e luminosità, offrendo la versatilità necessaria per le applicazioni commerciali dei chioschi, dal self-service e dai giochi all'automazione industriale e all'assistenza sanitaria.
Technical Specifications
Part Number(s)
IntelliTouch (Worldwide) - E328700
AccuTouch (Worldwide) - E326541
SecureTouch (Worldwide) - E335119
TouchPro PCAP (Worldwide) - E331019
Enclosure Color
Black
Touch Technology & Capacity
5-Wire Resistive (AccuTouch®) - Single-Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
PCAP (TouchPro® Projected Capacitive) - 10 Touch
SAW (SecureTouch® Surface Acoustic Wave) - Single Touch
Touch Interface
TouchPro PCAP - USB 2.0
AccuTouch, IntelliTouch, SecureTouch - Dual serial/USB 2.0
Diagonal Size
19'' diagonal, Active matrix TFT LCD (LED)
On Screen Display
Accessible through switches on the unit’s tethered OSD Control box.
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
Aspect Ratio
5:4
Active Area (mm)
374.78mm x 299.83mm
Resolution
1280 x 1024
Other Supported Resolutions
640 x 480 60Hz
720 x 400 70Hz
800 x 500, 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
Viewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 250 nits
IntelliTouch: 225 nits
AccuTouch: 200 nits
SecureTouch: 200 nits
TouchPro PCAP: 225 nits
Response Time-total (typical)
14 msec
Contrast Ratio
1000:1
Input Video Format
HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of Display Port video input
Input Video Frequency
Horizontal: 30 - 82 KHz
Vertical: 50 - 75 Hz
Power Supply
External DC - Optional power brick (sold separately)
Input power connector (Monitor)
Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)
Input Voltage
12VDC +/- 5%
Adapter Output Power Connector
DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)
Power Consumption (Typical)
ON (Default - 75% Brightness): 10.82 W
ON (Typical - 100% Brightness): 12.12 W
SLEEP (monitor + adapter): 1.5 W
OFF (monitor + adapter): 0.5 W
Dimensions
Bezel: 414.7mm x 342.7mm x 50mm
Zero-Bezel: 420.1mm x 348.1mm x 40.7mm
Shipping Box Dimensions
526mm x 450mm x 174mm
Weight (Unpackaged)
4.6 Kg
Weight (Packaged)
7.4 Kg
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20% to 80%
Storage: 10% to 95%
Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Warranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125
Regulatory approvals and declarations
Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; Russia EAC; RoHS, China RoHS, WEEE
Compliance
TouchPro PCAP Only
GLI 27 kV air / 8 kV contact ESD compliant
UL 62368 ball-drop compliant
IK07 impact compliant
Mounting Options
100 mm VESA mount (TouchPro PCAP Models see Part Numbers for details)
75 mm and 100mm VESA mount (IntelliTouch/AccuTouch/SecureTouch Models see Part Numbers for details)
Rear mount (TouchPro PCAP Models see Part Numbers for details)
2 Hole mounting interface on all four sides.
Front mount with optional bezel kit (IntelliTouch/AccuTouch/SecureTouch Models see Part Numbers for details - Not for use with TouchPro PCAP Models)
Rack mount with optional kit (IntelliTouch/AccuTouch/SecureTouch Models see Part Numbers for details - Not for use with TouchPro PCAP Models)
Flush mount with included brackets (TouchPro PCAP Models see Part Numbers for details)
What's in the Box
HDMI cable
VGA Cable
RJ45 OSD Remote
Touch USB Cable
Quick Install Guide
For Zero-Bezel Models: Flush Mount Brackets w/Screws
For Bezeled - IntelliTouch/AccuTouch/SecureTouch Models: “L” (Side Mount) Brackets and w/Screws
EEI Label
Japan Class-B TM info sheet
Options / Peripherals / Upgrades
Elo Remote OSD (RJ45) - Elo P/N: E483757
Elo Backpack® - Elo P/N: E611864
Elo Backpack® 3.0 - Elo P/N: E901355
Replacement Cable Kit - Elo P/N: E546861
Cable Kit DVI-D to HDMI – Elo P/N: E538507
Cable Kit DP to DP – Elo P/N: E582895
North America power brick - Elo P/N: E005277
European & Korea power brick - Elo P/N: E571601
UK power brick - Elo P/N: E180092
China power brick - Elo P/N: E558862
Taiwan power brick - Elo P/N: E818655
Japan power brick - Elo P/N: E182546
Argentina power brick - Elo P/N: E887099
Australia power brick - Elo P/N: E637593
IntelliTouch Stylus Pen - Elo P/N: D82064-000
Elo 17-inch & 19-inch L-Bracket- Elo P/N: E147211
Elo 19-inch- Flush-mount Bracket - Elo P/N: E001178
Elo 19-inch - Front-mount Bezel - Elo P/N: E163604 (See Mounting Options Spec for Compatibility)
Elo 19-inch Rack-mount Bracket - Elo P/N: E579652 (See Mounting Options Spec for Compatibility)
Power DC 24V/DC 12V Converter - Elo P/N: E239980
Optional PCAP Stylus Pen
E066148
