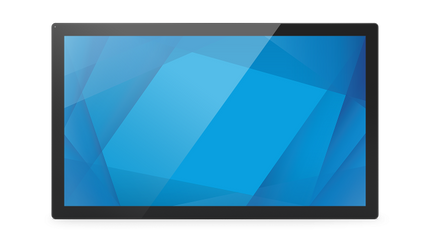

ELO TOUCH ET3204L
32-inch Large format Interactive Display
Migliora le tue applicazioni con il monitor touchscreen 3204L 32 pollici di Elo, che offre interattività in qualsiasi ambiente. Con il supporto fino a 40 tocchi simultanei, una reattività fulminea e un vetro anti-attrito, il display 3204L dà priorità all'esperienza utente. Combinando il display touch con uno dei nostri pc box o un lettore Brightsign, puoi trasformare facilmente questo display in un tablet versatile a grandezza naturale.
Technical Specifications
Part Number(s)
TouchPro PCAP (clear with anti-friction) E103164
Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 40 Touch with Palm Rejection and Touch Thru capability
Touch Thru
Supports up to 6mm glass/3mm plastic with up to 2 touches. Supports gloves up to 1.4mm
Touch Interfaces
USB-C
Diagonal Size
31.5'' diagonal, Active matrix TFT LCD (LED)
Active Area (mm)
698.4mm x 392.9mm
Aspect Ratio
16:9
Resolution
1920 x 1080 @ 60hz
Other Supported Resolutions
640 x 480 @ 60Hz
800 x 600 @ 56/60Hz
1024 x 768 @ 60Hz
1280 x 720 @ 60Hz
1280 x 960 @ 60Hz
1280 x 1024 @ 60Hz
1920 x 1080 @ 50/60Hz
Viewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
8-bit (16.7 million)
Brightness (typical)
LCD Panel: 400 nits
PCAP: 320 nits
Response Time-total (typical)
8 msec
Contrast Ratio
3000:1
On Screen Display
Let’s Get Started: Language Selection, Time Setting, Time Zone
Video Source Select: HDMI-1, HDMI-2, DisplayPort, USB-C
Video Settings: Video Port Discovery, Brightness, Contrast, Black Level, Sharpness and Aspect Ratio
Color Settings: Color Temperature, Color Sensor, User Preset (for color), Picture Modes and HDMI Full Range
Audio Settings: Audio Output, Mute, Volume selection
Information: Monitor, Temperature, IoT Network status, IoT Error Message, Help and Support
Power: Power Loss Behavior, Power Lock, Energy Saving Mode, Power Status Light options, HDMI CEC
Time: Time Set, On/Off Schedule
OSD Settings: Recall Defaults, OSD Timer, OSD Language, OSD Lock and OSD Portrait Rotation, Touch Through, Tabletop
Configuration: Source Port Lock (Will sync to EloView when connected), FW Update (via OTA or USB),
See user manual for full details.
I/O Ports
2x HDMI 1.4
USB-C (for Touch control and Video input)
USB-A (for Wi-Fi Adapter only)
RJ45 (for IoT LAN port)
RJ45 (for optional OSD remote)
DisplayPort 1.2
3.5mm TRS jack (for RS232/MDC)
3.5mm Audio Headphones out
4x Elo Edge Connect Micro USB 2.0
Control Buttons
Power
Video Source Selection
On Screen Display
Video
2x HDMI on Type A connector (HDCP-capable)
DisplayPort 1.2 connector (HDCP-capable)
USB-C connector (HDCP-capable)
Input Video Horizontal Sync frequency range: FHD: 30 – 70 KHz
Input Video Vertical Sync (frame rate) frequency range: 24 - 64 Hz
Headphone Output Connector
3.5 mm TRS jack
Speakers
2 x 5 W stereo speakers
Power
Input connector (power): IEC 60320-C13
Input signal specifications (power): 100-240VAC 50/60Hz
Output connector (bypass input power to backside device): IEC 60320-C14
AC outlet short cable (IEC C14 to C5 head) power rating: 100V/2A (200Watt), 220V/2A (440Watt)
Maximum Operating Time
24 hours/day
Power Consumption (Typical)
ON: 44 W
SLEEP: 1.43 W
OFF: 0.29 W
Dimensions
763.7 mm x 458.1 mm x 49.6 mm
Shipping Box Dimensions
905 mm x 680 mm x160 mm
Weight (Unpackaged)
10.9 Kg
Weight (Packaged)
15.28 Kg
Operating Temperature
Portrait/Landscape/Tilt (≤15°) Mode: 0°C to 40°C / 32°F to 104°F
Table top Mode: 0° C to 35° C / 32°F to 95°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 95% (38.7°C max wet bulb temperature)
Mounting Options
VESA 400 x 400mm, M6
Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Warranty
3-year with AUR included
Extended Service Options
4 year warranty coverage + AUR - Elo P/N: E740135
5 year warranty coverage + AUR - Elo P/N: E740330
Regulatory approvals and declarations
UUL 62368-1
FCC/CEC (US)
cUL, IC (Canada)
CB (International safety) (IEC/EN60950-1+IEC/EN62368-1)
CE (Europe)
VCCI (Japan)
RCM (Australia)
CCC/CEL, China RoHS (China)
NOM Mexico
IK07 and UL60950 for ball drop test
Energy Star 8.0
Other Features
Ambient Light Sensor - changes panel color to match ambient light, Auto Wake
OTA FW upgrade
What's in the Box
3204L Interactive Display
Quick Install Guide
AC (in) Power cable, IEC 60320-C13 to NA plug
AC (in) Power cable, IEC 60320-C13 to EU/KR plug
AC (in) Power cable, IEC 60320-C13 to UK plug
AC (out) Power cable, IEC 60320-C14 to IEC 60320-C5 (0.3m) (With PSE certified)
USB cable (1m) (Connector: Type-C to Type-C)
Energy label according to EU Regulation 2019/2013, 1x EU EEI, 2x UK EEI
4x M4x6mm flat head screws (for BrightSign players)
IDS Optional Accessories
2D Barcode Scanner (SE4107) – Elo P/N: E245047
2D Barcode Scanner (SE2707) – Elo P/N: E393160
Fingerprint Scanner – Elo P/N: E134286
Stand for IDS - Elo P/N: E722153
Wired OSD Remote - Elo P/N: E483757
Wall Mount Kit - Elo P/N: E721949
Replacement Cable Kit - Elo P/N: E285277
Elo Backpack® 4 (Value Model) - Elo P/N: E393754
Elo Backpack® 4 (Standard Model) - Elo P/N: E393359
RFID - Elo P/N: E673037
4K Conference Camera - Elo P/N: E988153
Wi-Fi Adapter Kit - Elo P/N: E131942
1.8M HDMI 2.0 Cable - Elo P/N: E951189
1.8M RS232 Cable - Elo P/N: E959434
1.8M USB Type-A to Type-C Cable - Elo P/N: E951381
1.8M DisplayPort to DisplayPort video Cable - Elo P/N: E582895
Elo 1M USB Type-C Cable Kit - Elo P/N: E802914
