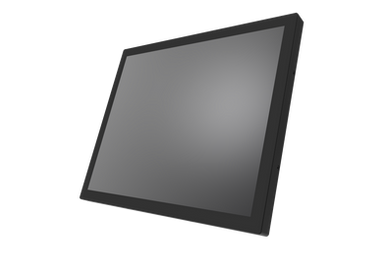

TEU-19S1-O-P

Touchmonitor open frame 19"

Il display touchscreen open frame da 19 pollici modello 19S1 offre una soluzione di livello industriale conveniente per gli OEM e gli integratori di sistemi che richiedono un prodotto affidabile per i propri clienti. Il touchscreen PCap permette un livello di protezione superiore per installazioni al pubblico, in esterno o in ambiente industriale pesante con il vetro IK07 antivandalo e la protezione IP65 frontale.

La connettività multipla: VGA, HDMI e Display Port permette di collegare il display a qualsiasi fonte.

Technical Specifications

Part Number(s)

TEU-19S1-O-P



Enclosure Color

Black

​

Touch Technology & Capacity

PCap - Projected Capacitive multi touch 10 Touch

​​

Touch Interface

USB 2.0

​

Diagonal Size

19'' diagonal, Active matrix TFT LCD (LED)

​

On Screen Display

Accessible through switches on the unit’s tethered OSD Control box.
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru

​​

Aspect Ratio

5:4

​

Active Area (mm)

377.9mm x 302.3mm

​

Resolution

1280 x 1024 at 60Hz

​

Other Supported Resolutions

640 x 480 60Hz
800 x 600 60Hz

1024 x 768 60Hz

​​

Viewing Angle

Horizontal: 170° total / Vertical: 160° total

​

Number of Colors

16.2 M

​

Brightness (typical)

LCD panel: 250 nits

​​

Response Time-total (typical)

5 msec

​

Contrast Ratio

1000:1

​

Input Video Format

HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of Display Port video input

​

Input Video Frequency

Horizontal: 30 - 60 KHz
Vertical: 50 - 75 Hz

​

Video Interface

HDMI, VGA & Display Port

​

Power Supply

External 12V 4.16A DC

​

Input power connector (Monitor)

Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)

​

Input Voltage

12VDC +/- 5%

​

Adapter Output Power Connector

DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)

​

Power Consumption (Typical)

Monitor + Adapter at 230V/50Hz
ON: 17.8
SLEEP: 1.5 W

​​

Dimensions

416.0mm x 344.0mm x 46.6mm

​

Shipping Box Dimensions

500.0mm x 425.0mm x 133.0mm

​

Weight (Unpackaged)

4.4 kg

​

Weight (Packaged)

6.3 kg

​

Operating Temperature

0°C to 40°C

​

Storage Temperature

-20°C to 60°C

​

Humidity

Operating: 20% to 80% Storage: 10% to 95%

​

Compliance

IP65 front

IK07 and UL60950

​

MTBF

50,000 hours demonstrated

​

Warranty

3-year

​

Extended Service Options

AUR (Advance Unit Replacement) 3 years

5 years extended warranty

​

Regulatory approvals and declarations

CE, FCC, RoHS

​

What's in the Box

HDMI Cable
VGA Cable
Remote OSD
Display Port cable
Touch USB Cable

Power brick 12V

Power cord​

Download Link

DATASHEET

DISEGNO MECCANICO

MANUALE
